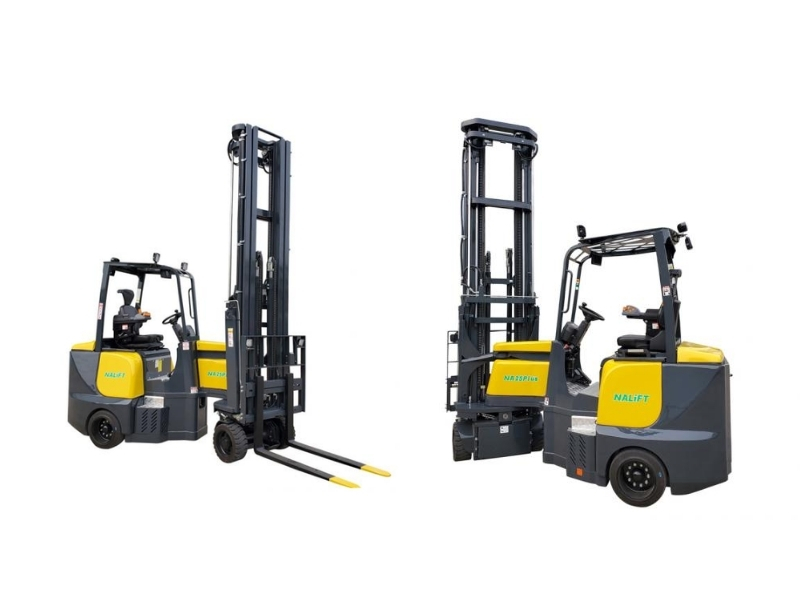

Narrow Aisle Articulated Forklifts

Fingertip armrest

Combines fingertip armrest and electro proportional valve, Nalift VNA forklifts provides better driving experience, more flexible and accurate operation. It also provides a special picking mode, easy for drivers to load/unload pallets in narrow aisles. With better inching performance, it makes the Nalift articulated forklifts very suitable for high-intensity work.

Proportional valve

Electro-hydraulic proportional valve match with fingertip armrest can adjust the speed of mast lifting/falling, side shift and tilting at will, making it easier and more accurate to pick up/unload goods in narrow aisles.

ZAPI Controller

Nalift VNA articulated forklift ranges are standard fitted with 80V full AC ZAPI dual-core controller. As the voltage is higher, it produces lower current, lower heating, lower failure rate. Therefore, all electrical components will have a longer service life.

Lifting Motor and Driving Motor

Lifting Motor: Fitted with external encoder bearing, easy for maintenance. 80V AC 15kw/h. Lifting speed: 0.44/0.5m/s.

Driving Motor: Fitted with external encoder bearing, easy for maintenance. 80V AC 19.5kw/h. Driving speed: 16km/h. Gradeability: 18%/20%.

Adjustable Suspension Seat

OPS system
Safe belt
High suitability

Bearings

The steering motor drives the large gear ring through the small gear ring, which is more labor-saving and has longer service. Extremely small gear clearance ensures structural stability and thus reduces failure rates. 10 years warranty for the gear.

Cooling Fans

All Nalift VNA forklifts are equipped with two efficient cooling fans, even in high temperature environment it can quickly cool down the motor and gear pump.

Guiding lasers

When the laser point to pallet center then drivers can steer direction, pushing forks into fork section accurately. It reduces accidents greatly.
